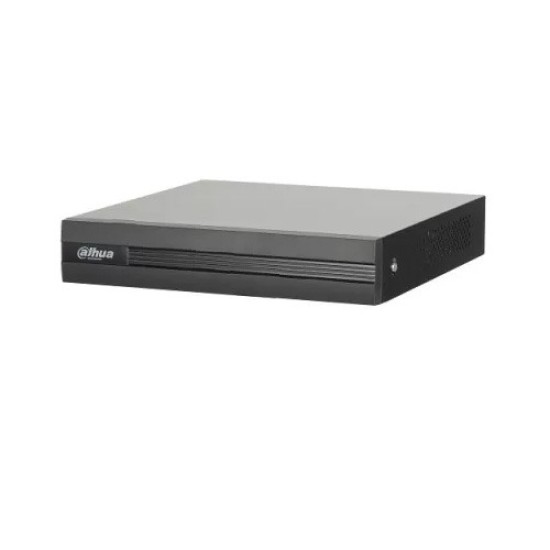

Dahua XVR1B08H 8 Channel Penta-Brid Digital Video Recorder

Dahua XVR1B08H 8 Channel Penta-Brid Digital Video Recorder

Dahua XVR1B08H is a cutting-edge 8 Channel Penta-Brid Digital Video Recorder (DVR) that stands at the forefront of advanced surveillance technology. Designed with a powerful embedded processor and running on the reliable Embedded LINUX operating system, this DVR ensures seamless operation and robust performance for security applications. With the capability to accommodate 8+2 IP camera inputs, each supporting resolutions of up to 12MP, the XVR1B08H provides a comprehensive surveillance solution suitable for a range of environments. The two-way talk feature, utilizing audio in/out ports, enhances communication capabilities, adding an extra layer of security. The DVR boasts a versatile display interface with 1 HDMI and 1 VGA port, supporting resolutions of 1920×1080, 1280×1024, and 1280×720. Its multi-screen display options, including 1/4 and 1/4/6 configurations, adapt to the user's preferences, offering flexibility in monitoring. In terms of recording, the XVR1B08H supports advanced compression technologies such as H.265+/H.265 and H.264+/H.264, ensuring efficient use of storage space without compromising video quality. The recording resolution spans from 5M-N to CIF, catering to diverse surveillance needs. The recording modes, including manual, schedule, motion detection, and alarm, provide customization options for users. The DVR excels in video detection and alarm functionalities, triggering events like recording, PTZ activation, video push, email, FTP, snapshot capture, and audible alerts. The motion detection feature, with 396 configurable zones, enhances precision in identifying potential threats. For playback and backup, the XVR1B08H supports synchronized playback, various search modes, and a range of playback functions. With third-party support for renowned camera brands, compatibility is guaranteed, offering integration with devices from Dahua and other leading manufacturers. On the network front, the XVR1B08H ensures seamless connectivity with a variety of protocols, supporting up to 128 simultaneous user accesses. The inclusion of USB ports facilitates easy backup, while the 1 SATA port allows for internal storage expansion up to 6TB. With its compact dimensions of 197mm×192mm×41mm and a net weight of 0.54kg, the Dahua XVR1B08H is not only feature-rich but also space-efficient. Operating in a wide temperature range and with a durable construction, it is suitable for diverse operational conditions, making it a reliable choice for comprehensive video surveillance applications.

Features

• Penta-Brid Technology: The Dahua XVR1B08H employs innovative Penta-Brid technology, enabling compatibility with five different video signal types - HDCVI, AHD, TVI, CVBS, and IP. This versatility ensures seamless integration with various camera types, providing flexibility in system configuration.
• High Camera Capacity: With support for 8+2 IP camera inputs, each capable of handling resolutions up to 12MP, the XVR1B08H offers a comprehensive surveillance solution suitable for diverse environments. This high camera capacity makes it ideal for both small-scale and larger-scale security setups.
• Two-Way Talk Capability: The DVR features a two-way talk function, utilizing audio in/out ports with RCA connectors. This enables users to engage in real-time communication through the system, enhancing security measures and allowing for interactive monitoring.
• Versatile Display Options: The XVR1B08H provides a flexible display interface with 1 HDMI and 1 VGA port, supporting resolutions including 1920×1080, 1280×1024, and 1280×720. The multi-screen display options, such as 1/4 and 1/4/6 configurations, cater to user preferences and monitoring needs.
• Advanced Video Compression: Supporting H.265+/H.265 and H.264+/H.264 compression technologies, the DVR ensures efficient utilization of storage space while maintaining high-quality video recording. This feature is crucial for optimizing storage capacity and bandwidth usage in surveillance applications.
• Customizable Recording Modes: The XVR1B08H offers a range of recording modes, including manual, schedule (general and continuous), motion detection (MD), and alarm-triggered recording. This flexibility allows users to customize the recording settings based on specific surveillance requirements.
• Extensive Video Detection and Alarm Features: The DVR includes comprehensive video detection features such as motion detection, video loss detection, tampering detection, and diagnosis. Trigger events, including recording, PTZ activation, video push, email notifications, FTP uploads, snapshot captures, buzzer alerts, and on-screen tips, enhance real-time monitoring and response capabilities.
• Playback and Backup Options: Supporting synchronized playback for up to 4 channels and various search modes (time/date, alarm, MD, and exact search), the XVR1B08H provides a user-friendly playback experience. Backup options include USB device and network backups, ensuring data preservation and accessibility.
• Network Connectivity and Compatibility: The DVR comes equipped with a network interface (1 RJ-45 Port, 100M) and supports various network functions such as HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, and more. It is compatible with third-party devices from renowned brands, ensuring seamless integration into existing surveillance ecosystems.
• Storage Expansion and User Access: Featuring 1 SATA port with support for up to 6TB internal HDD capacity, the XVR1B08H allows users to expand storage based on their needs. With a maximum user access of 128 simultaneous users, the DVR accommodates multiple users for remote monitoring and management.
