| Display Format Native Resolution | 3,840 x 2,160 |
| Aspect Ratio | 16:9 |
| Picture Response Time | 8ms |
| Refresh Frequency | 120Hz |
| Pixel Pitch | 0.5622 × 0.5622mm |
| Panel Resolution | 4K video resolution (3,840 x 2,160) |
| Display Colors | 1.07B(10bit) |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio | 1200 :1 |
| Viewing Angle | Hor. 178°, Ver. 178° |
| Life Time | 30,000 Hours |
| Touch System |
| Touch Point | 20 points touch |
| Touch Tool | Finger, Passive infrared pen |
| Touch Response Time | ≦12ms |
| Interpolation Resolution | 32768(W)×32768(D) |
| System Requirement | Windows10/Windows8/Windows7/Windows XP /Linux/Mac/
Android/Chrome |
| Others | Minimum object size: 2mm
Writing Height: 3.5mm
Touch Drive: Free drive |
| Operating System |
| System Version | Android 8.0 Oreo |
| CPU | Dual core A73+Dual core A53 |
| GPU | Quad core Mali G51 |
| RAM | 4GB |
| ROM | 32GB |
| Connectivity |
| HDMI | Input:: HDMI 2.0 x 3
Output: HDMI x 1 (4K2K) |
| VGA | VGA x 1 |
| PC Audio In | PC analog audio 3.5 mm x 1 |
| Audio out | Analog 3.5 mm x 1
SPDIF x1
Sound Channel: 2.0
Output Power: 16W*2 |
| LAN | LAN RJ-45 x 1 |
| USB | USB 2.0 x3 (including 2 USB ports in front)
USB 3.0 x 3 |
| Touch Output | USB 2.0 Type-B for touch control x 2 |
| RS232 | RS-232 x 1 |
| Others | Built-in Wi-Fi |
| Physical Specification |
| Active Screen Size | 98 inch |
| Dimensions | 2245 x 1323 x 90.5mm |
| Weight | 101.5 kg |
| Power | 600W |
| Standby Power | ≤0.5W |
| Power Requirements | 100‐240V~ 50/60Hz |
| Others | Mounting Screw Size: M8 x 25 mm
VESA Form Factor: 800x400 mm |

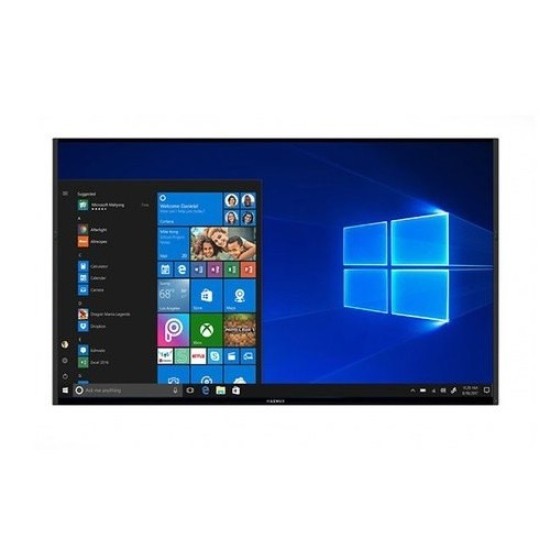

BOXLIGHT ProColor 983U 98 Inch All In One 4K Ultra HD Flat Panel Interactive Display
BOXLIGHT ProColor 983U is one of the most innovative displays available on the market today! With its 98-inch 4k ultra HD display, this interactive display offers incredible visual quality and immersion. The 16:9 aspect ratio and 8ms response time ensure smooth viewing and minimize blur, even during fast-paced content such as sports or action movies. The ProColor 983U features 4k video resolution (3840 x 2160), providing stunning clarity and detail that will make you feel like you're right in the middle of the action. Its 1.07 billion colors (10-bit) offer vibrant and lifelike colors, perfect for watching your favorite shows, movies, or presentations. The display also boasts a high contrast ratio of 1200:1, ensuring deep blacks and rich colors that will make your content pop. And with a brightness rating of 350cd/m2, you won't have trouble seeing the display no matter how brightly lit the room is. The ProColor 983U is also an interactive display, meaning you can use touch input to navigate and interact with your content. The display features up to 20 touch points, allowing you to easily navigate through menus, select items, and more. The touch response time is <12ms, ensuring minimal lag when using gestures and commands. In addition to its great visual qualities, the ProColor 983U also offers a range of connectivity options. It features three HDMI ports (one of them being a 4K2K port), VGA, PC audio input, and SPDIF outputs. These ports allow you to easily connect your display to various devices such as laptops, gaming consoles, and Blu-ray players. Plus, if you need to expand your setup further, the display also features two USB 3.0 ports and three USB 2.0 ports for connecting external hardware. In terms of design, the ProColor 983U has a sleek and modern look thanks to its slim bezel around all sides. It weighs in at 101.5kg and measures 2245 x 1323 x 90.5mm in dimensions, so it's comfortable enough to place on a desk or mount onto a wall. And with a power consumption of only 0.5 watts in standby mode, you don't have to worry about excessively high electricity bills.
BOXLIGHT ProColor 983U 98 Inch All In One 4K Ultra HD Flat Panel Interactive Display Features
- Native 4K Resolution: The BOXLIGHT ProColor 983U features a native 4K resolution of 3840 x 2160, providing crisp and clear images with a high level of detail.
- Interactive Display: The display is interactive, allowing users to use their finger or a passive infrared pen to interact with the content on the screen.
- Touch Response Time: The touch response time is less than 12ms, providing smooth and responsive interaction.
- Brightness and Contrast: The display has a typical brightness of 350 cd/m2 and a contrast ratio of 1200:1, delivering vibrant colors and deep blacks.
- Wide Viewing Angle: The display has a horizontal viewing angle of 178° and a vertical viewing angle of 178°, allowing for comfortable viewing from multiple angles.
- Long Life Span: The display has a life span of 30,000 hours, providing reliable and long-lasting performance.
- Multiple Connectivity Options: The display has various connectivity options, including HDMI, VGA, PC audio input, and more.
- Built-in Wi-Fi: The display comes with built-in Wi-Fi, allowing for wireless connectivity and easy integration into any setting.
- Adjustable Writing Height: The display has an adjustable writing height of 3.5mm, providing convenient use and comfortable viewing experience.
